Torque Wrench Calibration Capability:
(Up To 40,000 Ft/Lbs)
Clicker Type Torque Wrenches
Digital Torque Wrenches
Manual Torque Wrenches
Automatic Torque 18v or 36v and Pneumatic
Hydraulic Torque Wrenches
Torque Multipliers
Pump Gauges
Accreditation And Documentation
At HYTORC Corpus Christi, we provide on-site
calibration services to customers residing in most of
Texas. If your establishment is near one of the following
locations, we can perform your required
torque calibration services on-site:
On Site Torque Wrench Calibration Services
The purpose of a torque wrench is to apply the correct amount of torque to tighten a fastener such as a nut, bolt or screw. Torque wrenches were
originally used by municipalities to prevent over-tightening of nuts and bolts on water and steam pipes in the early 20th century. The basic design of
the torque wrench has evolved greatly over the years to fit many different types of applications. The torque wrench is now a commonly used tool in
industries around the world, including manufacturing, construction, maintenance, offshore, subsea, mining, aerospace and transportation. Controlling
the accuracy of applied torque is a vital task for a wide range of processes found in industries from manufacturing to aerospace. Companies must be
assured that torque specifications are met during their manufacturing processes to ensure the quality and, most importantly, the safety of their
product. A rigid and sustained calibration program is essential to maintain this ever important goal.
There are several types of torque wrenches and each type is available in many different sizes and designed to suit a wide range of torque specifications.
Clicker type, slip type and break type are three basic styles of torque wrenches:
Clicker torque wrenches make a loud “click” noise when
the specified torque is reached. Over-torque conditions
are common with this style of torque wrench due to the
fact that the click occurs around 3 degrees after the
specified torque is reached.
Slip torque wrenches prevent over-torque by
sending a signal when specified torque is achieved
and then release.
A preset torque wrench is designed to apply a single specific torque value.
Some preset torque wrenches have no external scale but are internally
adjustable within a specified range and come with a special tool to make the
adjustment. Other preset torque wrenches, such as a T handle or T bar are
more simplistic and are not adjustable. Adjustable torque wrenches have an
external scale near the handle showing the available range in increments of
the measuring unit such as foot lbs (ft/lbs). The handle is turned until line or
arrow meets up with the desired amount of torque. Common units of
measure for torque wrenches are inch pounds (in/lbs), foot pounds (ft/lbs),
Newton meters (Nm), centimeters per inch (cm/in), kilogram-force per
centimeter (kgf/cm) and ounces-force per inch (ozf/in).
Torque wrenches should be checked and re-calibrated often to compensate for wear or defective parts. Any adjustable torque wrench should be
stored at 20% of the full scale value of the range to prevent damage to internal parts. Most manufacturers recommend calibration of a torque
wrench after every 5000 cycles or 1 year. However, process accuracy requirements may dictate more frequent calibration. A “cycle” of a torque
wrench is completed each time a torque wrench is used to meet the amount of torque it has been set to.

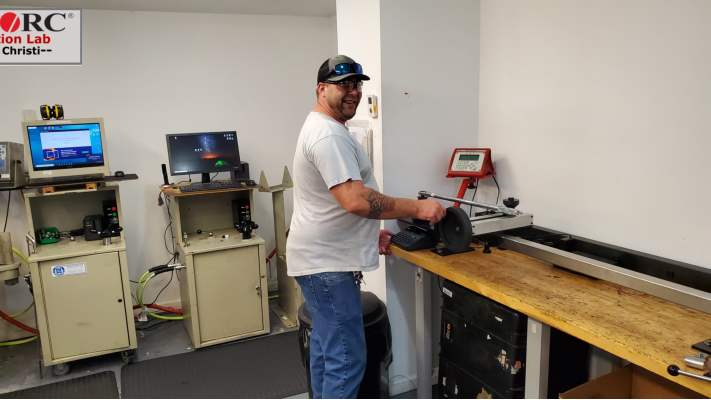

Torque Wrench Calibration
Break torque wrenches indicate the specified torque has
been reached by deflecting 20-90 degrees on delivery.
This limits the amount of torque applied.
All calibrations are traceable through NIST, (National
Institute of Standard and Technology) and include “long
form” calibration certificates with as-found/as-left data.
ISO/IEC 17025 accredited calibration is provided upon
customer request. HYTORC Corpus Christi also
offers a web based calibration interface which provides
our customers access to electronic copies of their
calibration certificates which can be viewed or printed
as needed. Standard turnaround time is 24- 48 hours.
Houston
Longview
Midland/Odessa
San Antonio
Dallas/Ft. Worth
Corpus Christi
and Surrounding Areas
24/7/365
(361) 888-5080
Beaumont
